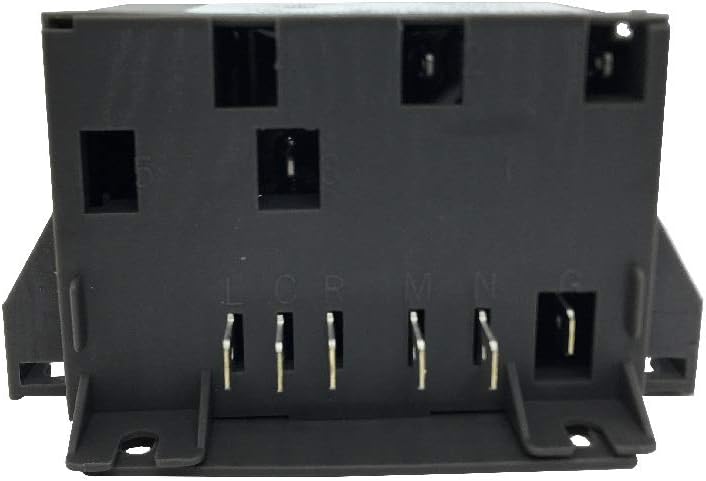

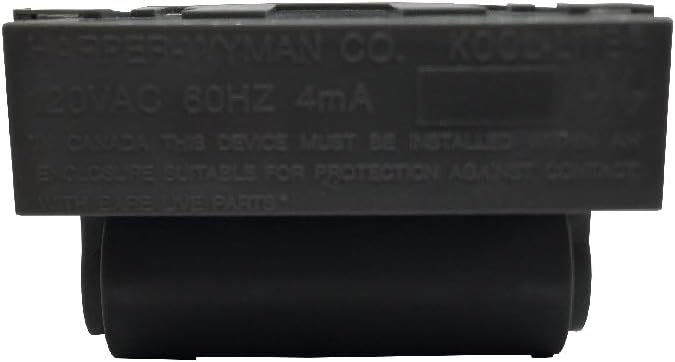

Spark Module (2+1) 120 Volts, Reignition Module for Gas Range

The M-6549G1004E Reignition Spark module is designed to ignite Natural, Manufactured, Mixed, LP or LP-Air gas supplies in a reignition system. The module offers 4 Manual outputs used to ignite the top burners of a typical range and 1 reignition output to ignite the oven burner. The module operates with an input voltage from 102 VAC to 132 VACS. Top burner ignition is accomplished by closing switch contacts between the “C” and “M” terminals which will cause sparking to occur on all electrodes. Sparking will continue until the switch contacts have been removed. For Oven ignition, sparking will occur on all electrodes when a switch contact closes between the “C” and “R” terminals. Sparking will continue until a flame has been detected or the switch contact has opened. In the Reignition mode, with the switch contacts between “C” and “R” closed, if the flame goes out, the module will begin to spark in an effort to reignite the flame. This module is a direct OEM replacement for Brown Stove Ranges using the oven reignition system. Brown Stove part number is 180-1B173.

• Spark Module, Reignition Spark Module, 2+1 Spark Module, Gas Range Module
• Models: 6549G1001E, 6549G1004E
• Ranges: Brown Stove, Peerless
• Part Numbers: 180-1B173, 2357
• Cesar-Scott, Inc. is the manufacturer of this product. Consult with Cesar-Scott, Inc for higher volume.
